Full code can be found here.

This article covers creating a Reaper plugins in C++ that prints “Hello world!” to the console.

Plugins are created by building a dynamic link library (DLL) with the reaper software development kit (SDK) and placing it in the UserPlugins directory.

Project Setup

  1. Copy reaper_plugin.h and reaper_plugin_functions.h into the project.
  2. For a leaner DLL you can enable only the SDK functions you need by defining REAPERAPI_MINIMAL in the preprocessor then using REAPERAPI_WANT_<function> to enable specific functions.
  3. Define REAPERAPI_WANT_ShowConsoleMsg to print to the console

Building with CMake

I’m using CMake as my build tool so my DLL’s target CMakeLists.txt looks like this:

add_library(reaper_sdk SHARED
    "main.cpp"
    "main.hpp"
    "reaper_plugin.h"
    "reaper_plugin_functions.h"
)

target_compile_definitions(reaper_sdk PRIVATE
                           REAPERAPI_MINIMAL
                           REAPERAPI_WANT_ShowConsoleMsg
)

Defining the entry point

The plugins’s entry point function is defined with the SDK’s REAPER_PLUGIN_ENTRYPOINT macro. Enable C linkage with extern "C" and use REAPER_PLUGIN_DLL_EXPORT from the SDK to export the function’s symbol from the DLL.

Define the header as follows:

#pragma once

#include "reaper_plugin.h"

extern "C" {
    REAPER_PLUGIN_DLL_EXPORT
    int REAPER_PLUGIN_ENTRYPOINT(HINSTANCE hInstance, reaper_plugin_info_t* rec);
}

Implementation

  1. Define REAPERAPI_IMPLEMENT in a single translation unit to instantiate the SDK’s functions
  2. Create a global variable to store the plugin information struct passed to the entry point function
#define REAPERAPI_IMPLEMENT
#include "reaper_plugin_functions.h"

#include "main.hpp"

reaper_plugin_info_t* g_rec = nullptr;

The entry point function:

extern "C" {
    REAPER_PLUGIN_DLL_EXPORT
    int REAPER_PLUGIN_ENTRYPOINT(HINSTANCE hInstance, reaper_plugin_info_t* rec) {
        if (!rec || (REAPERAPI_LoadAPI(rec->GetFunc) > 0)) {
            return 0;
        }

        // Save the info ptr
        g_rec = rec;

        ShowConsoleMsg("Hello world!");

        return 1;
    }
}
  1. Check that rec is valid
  2. Load the API functions using REAPERAPI_LoadAPI. It returns the number of functions which failed to load.
  3. Return 0 to indicate failure
  4. Save the rec pointer
  5. Print the message using ShowConsoleMsg
  6. Return 1 to indicate successful plugin initialisation.

Using the DLL

  1. Place the compiled DLL in the UserPlugins directory (you can find it in Reaper by clicking Options->Show REAPER resource path in explorer/finder...)
  2. Reload Reaper

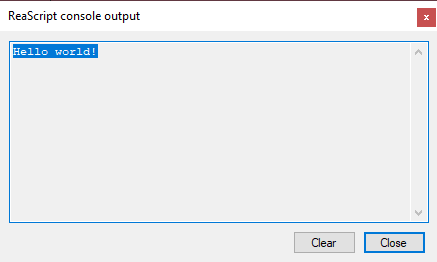

  3. Observe the following message.
Reaper Hello World Message
The Reaper "Hello World!" message.
